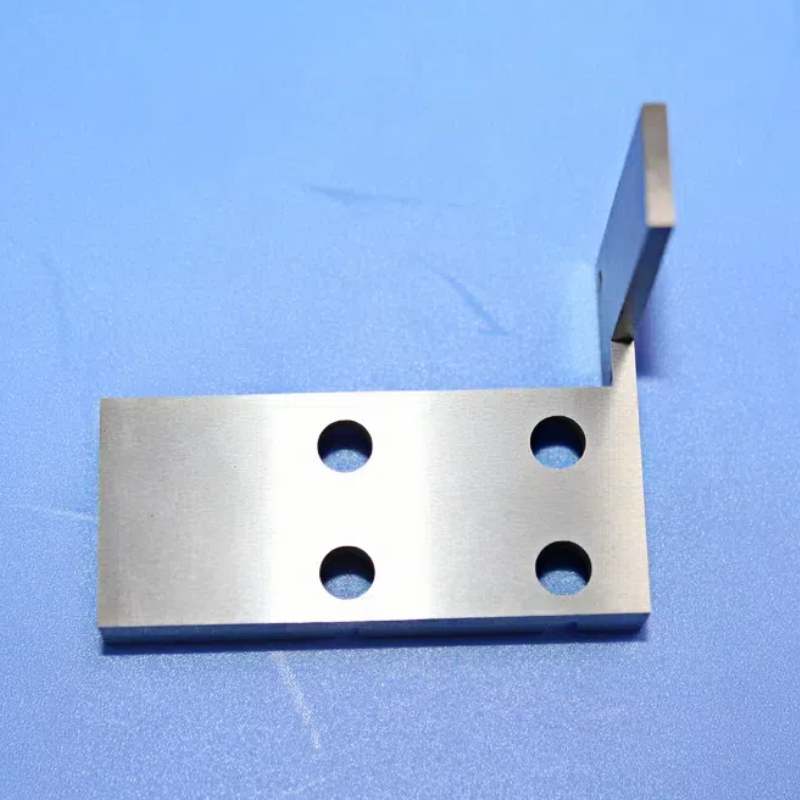

Custom Non-Magnetic Alloy Four-Bore Contoured Component with Precision Holes for Tooling & Assembly

Custom Non-Magnetic Alloy Four-Bore Contoured Component with Precision Holes for Tooling & Assembly

পণ্যের বিবরণ:
উৎপত্তি স্থল:	চীন
পরিচিতিমুলক নাম:	Sanxin
সাক্ষ্যদান:	ISO
মডেল নম্বার:	SX1306
প্রদান:
ন্যূনতম চাহিদার পরিমাণ:	1
ডেলিভারি সময়:	5-30 দিন
পরিশোধের শর্ত:	টি/টি, এল/সি, ওয়েস্টার্ন ইউনিয়ন

এখন যোগাযোগ

বিস্তারিত তথ্য
পণ্যের বর্ণনা

বিস্তারিত তথ্য
ডিজাইন:	অ-মানক আকৃতির অংশ	স্থায়িত্ব:	দীর্ঘস্থায়ী
মাপ:	কাস্টমাইজড বা স্ট্যান্ডার্ড	প্রক্রিয়াকরণ পদ্ধতি:	কাটিয়া, পিষে, পলিশিং
তাপ পরিবাহিতা:	80-100 W/mK	ক্যাটাগরি:	সিমেন্টেড কার্বাইড টুল
উপাদান:	কার্বাইড, টাংস্টেন কোবাল্ট অ্যালয়, টাংস্টেন কার্বাইড WC+Co, 42CrMo, 100% ভার্জিন কার্বাইড	যথার্থতা:	উচ্চ নির্ভুলতা
আবেদন:	CNC প্রক্রিয়া, খনির পাথর, স্টেইনলেস স্টীল, ডাই স্টিল ~ HRC58 স্টিল, CNC মিলিং মেশিনিং	প্রসেসিং টাইপ:	ধাতু, ধাতু কাটার সরঞ্জাম, ফিনিশিং মেশিন
আকার:	গ্রাহকের অনুরোধ, কাস্টমাইজড, স্ট্যান্ডার্ড বা কাস্টমাইজড

পণ্যের বর্ণনা

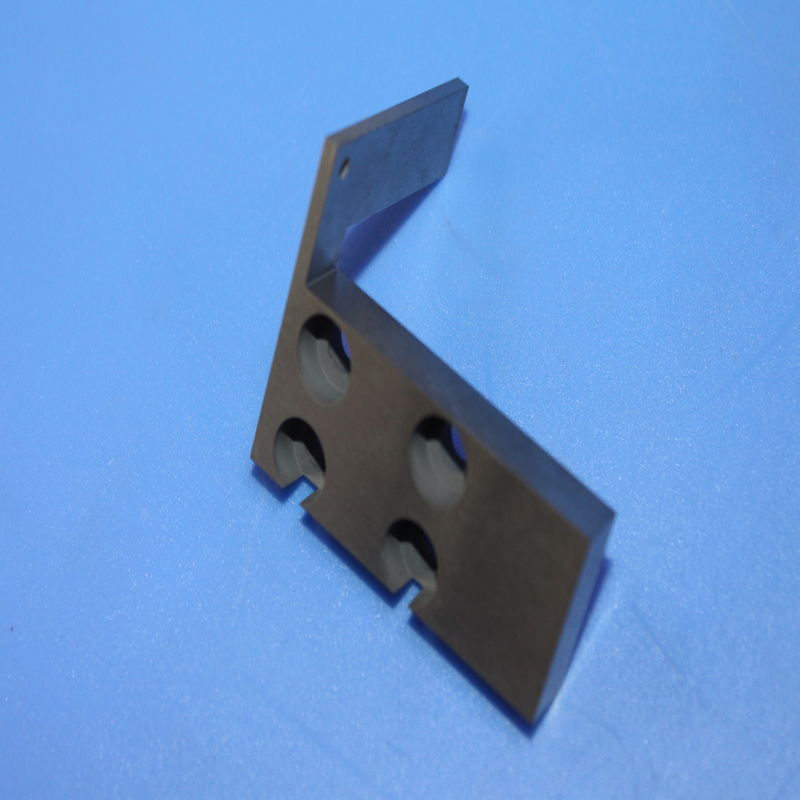

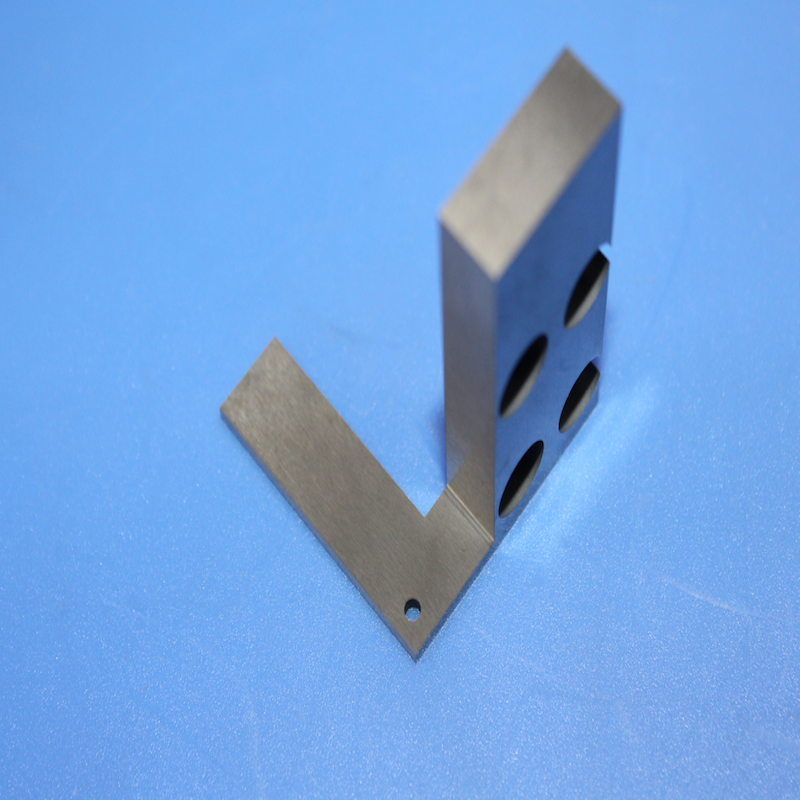

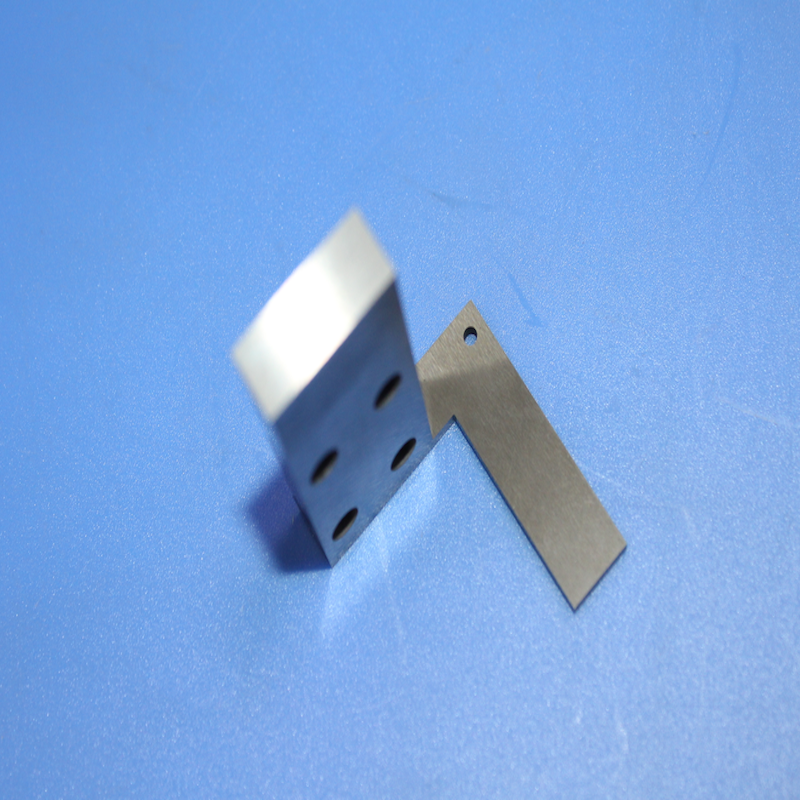

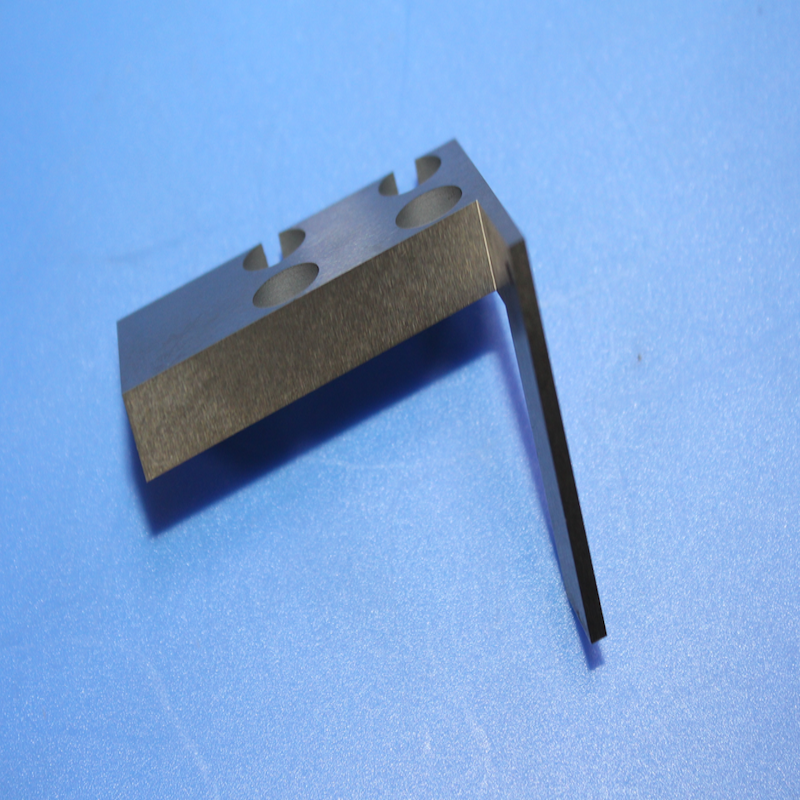

Custom Non-Magnetic Alloy 4‑Hole Contoured Component Shaped Parts for Assembly & Tooling

Unlike standard rings, bushings or single‑bore inserts, the Non‑Magnetic Alloy Four‑Bore Contoured Component merges two difficult requirements into one: a non‑linear outer profile combined with multiple precision holes that must maintain exact positional relationships. This combination is demanding to machine, yet it is essential in custom fixtures, multi‑point alignment tools, EDM workholding and calibration standards where magnetic interference must be eliminated.

The "four‑hole shaped" part - when geometry complexity meets hole‑position precision, standard catalogs end and custom engineering begins. In automatic inspection, die‑set alignment and sensor fixtures, non‑magnetic properties are just part of the requirement; the real need is a single component that both positions and guides without magnetic interference.

Materials That Meet the Need

We begin with austenitic non‑magnetic alloys (300‑series stainless steels, high‑manganese austenitic steels, or WC‑Ni cemented carbide when hardness is critical) that remain non‑magnetic in service.

μ < 1.002 permeability - verified when required
Fabrication: multi‑axis CNC milling, wire EDM, sinker EDM
Hardness options: from austenitic steel (HRC 25‑48) to WC‑Ni (HRA 89‑92) depending on wear and cutting resistance needs
Anti‑corrosion: ideal for cleanroom, medical or fluid‑handling applications

Why "Shaped + Four Holes" Is Difficult - And How We Solve It

Unlike simple rings or rectangular bases, a contoured outer profile with four precision bores requires:

Multi‑setup machining - each setup introduces potential misalignment
Stress relaxation - removing material asymmetrically can cause distortion
Hole‑to‑hole positional control - especially challenging when holes are not in a straight line
Non‑magnetic property preservation - grinding or EDM can induce surface stress or magnetism if not controlled

How we solve it: Plan sequence from solid; use wire EDM for contour + bore positioning in one clamped setup; stress‑relieve after roughing; verify hole positions with CMM.

Key Applications (Where Both Shape and Holes Matter)

Inspection fixturing (CMM / vision systems) - A curved or stepped carrier with four tapped holes to mount sensors or probes - non‑magnetic eliminates eddy‑current interference.
EDM workholding (submersible fixtures) - Complex‑profile support with four flush or electrode mounting holes; austenitic stainless resists corrosion in dielectric fluid.
Assembly jigs (multi‑part alignment) - A contoured base with four precision dowel holes that locate mating components - magnetic‑free avoids particle attraction on clean lines.
Calibration / test standards - A uniquely shaped artifact with four reference bores for qualifying measurement systems.
Magnetic‑sensitive automation (pick‑and‑place tooling) - Custom end‑effector mounting plate with four through‑holes and a non‑rectangular cut‑out pattern.

Core Capability & Differentiation

Our approach: machine the entire component from a single piece of non‑magnetic alloy, ensuring both μ < 1.002 permeability and permanent hole‑position accuracy.

Property / Requirement	Our Four‑Bore Contoured Component	Standard Alternative
Magnetic Permeability	< 1.002 (truly non‑magnetic)	Magnetic (4140 / mild steel)
Outer Shape	Custom (curved, stepped, non‑rectangular)	I‑shaped or rectangular only
Number of Holes	Up to 4 precision bores	Fixed patterns; limited
Hole Position Tolerance	± 0.005 mm	±0.03 mm ~ ±0.3 mm (as‑received)
Bore Types	Clearance, tapped, dowel or stepped holes	Limited options
Integration	Single‑piece; no assembly error	Multi‑component shim / stack‑up

Custom Order Process

Upload 3D model / 2D drawing (STEP, IGES, PDF)
Material selection: austenitic stainless / high‑Mn austenitic steel / WC‑Ni carbide
Manufacturing (5‑25 day lead time typical)
Inspection & shipping

Ready to stop compromising with multi‑part assemblies or magnetic steel blocks?
