Non-Magnetic Alloy Center Rings with Customizable Dimensions and Excellent Corrosion Resistance for Precision Machined Applications

Non-Magnetic Alloy Center Rings with Customizable Dimensions and Excellent Corrosion Resistance for Precision Machined Applications

পণ্যের বিবরণ:
উৎপত্তি স্থল:	চীন
পরিচিতিমুলক নাম:	Sanxin
সাক্ষ্যদান:	ISO
মডেল নম্বার:	SX1290
প্রদান:
ন্যূনতম চাহিদার পরিমাণ:	2
ডেলিভারি সময়:	5-25 দিন
পরিশোধের শর্ত:	টি/টি, এল/সি, ওয়েস্টার্ন ইউনিয়ন

এখন যোগাযোগ

বিস্তারিত তথ্য
পণ্যের বর্ণনা

বিস্তারিত তথ্য
মাত্রা:	কাস্টমাইজযোগ্য (অভ্যন্তরীণ ব্যাস, বাইরের ব্যাস, দৈর্ঘ্য)	প্রভাব প্রতিরোধ:	চমৎকার
ব্যবহার:	গাইড স্লিভ, লোকেটিং হাতা	আকার:	কাস্টমাইজযোগ্য, ক্লায়েন্ট অঙ্কন
সেবা:	কাস্টমাইজড সেবা	ওএম সার্ভিস:	গ্রহণযোগ্য
ই এম:	পাওয়া যায়	পৃষ্ঠের রুক্ষতা:	1.6~0.1
আকৃতি:	ট্র্যাপিজয়েড, সিলিন্ডার	কাজের তাপমাত্রা:	-200 ° C ~ +800 ° C।
জারা প্রতিরোধ:	চমৎকার	কীওয়ার্ড:	টংস্টেন কার্বাইড বুশিং
জারা প্রতিরোধের:	চমৎকার	প্যাকিং:	স্ট্যান্ডার্ড এক্সপোর্ট প্যাকেজ
বিশেষভাবে তুলে ধরা:	Customizable Dimensions Non-Magnetic Alloy Center Ring , Excellent Corrosion Resistance Precision Machined Ring , Precision Machined Tungsten Carbide Sleeve

পণ্যের বর্ণনা

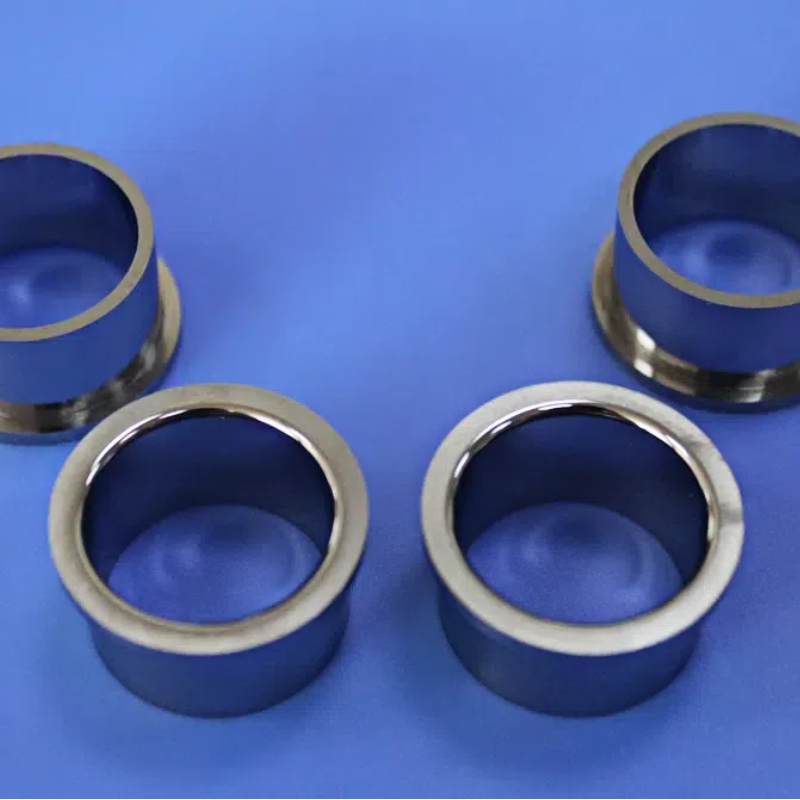

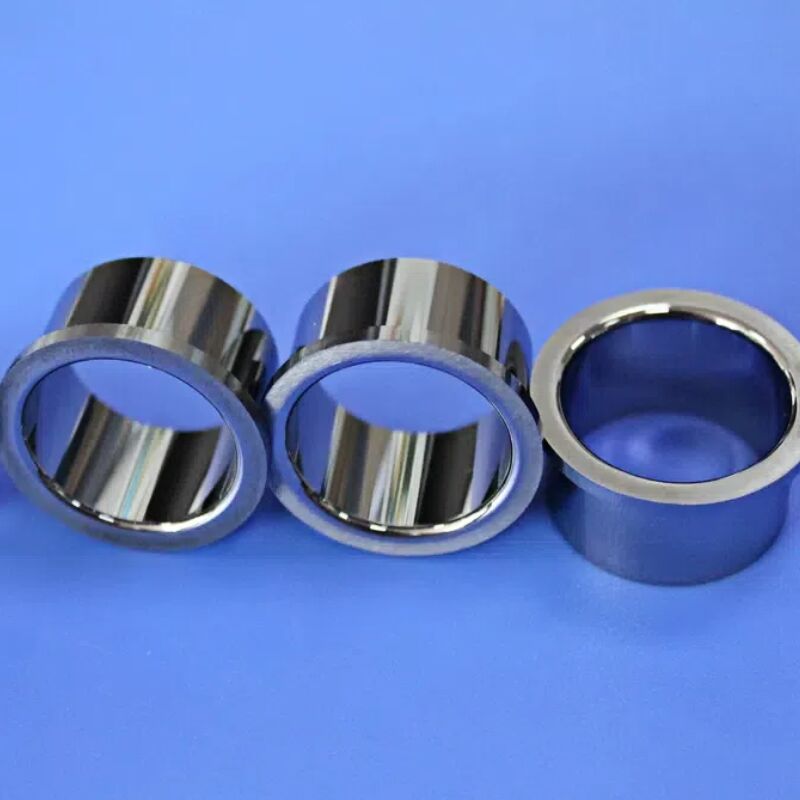

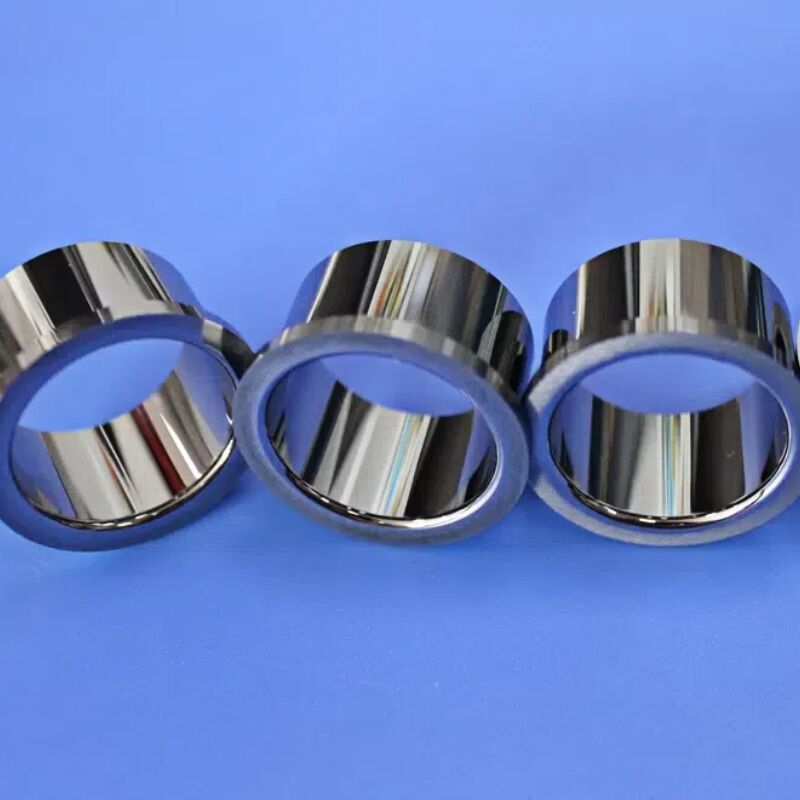

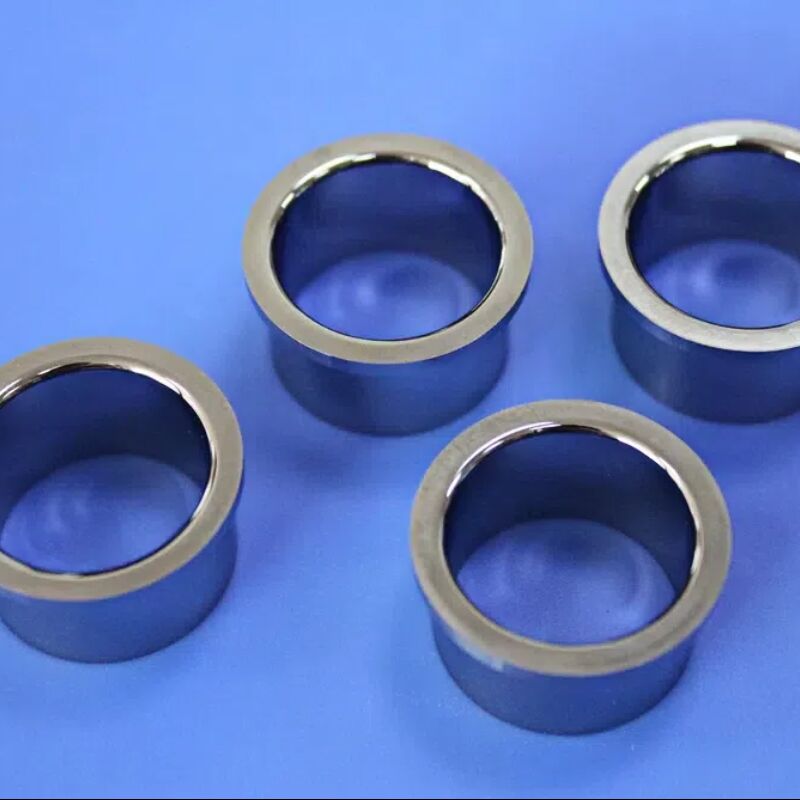

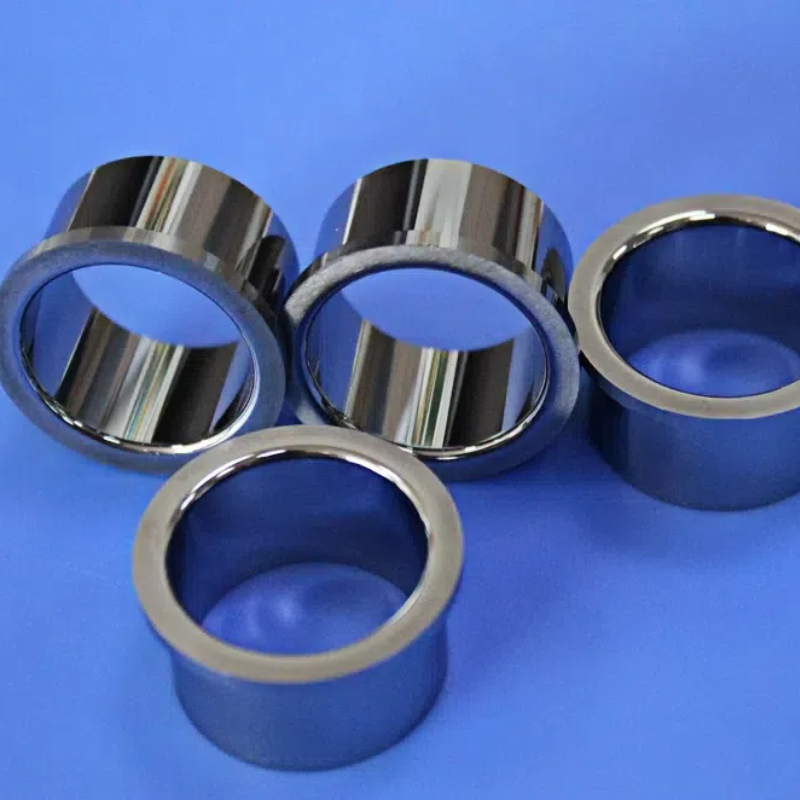

Non-Magnetic Alloy Center Rings

Precision Machined Rings for Shielding, Spacing & Mounting

Our precision-machined center rings offer zero magnetic interference, excellent dimensional stability, and corrosion resistance for use in electronics, medical devices, and research equipment. Custom sizes and materials available.

Why Choose Our Non-Magnetic Rings?

Guaranteed Non-Magnetic Performance: Manufactured from carefully selected copper-nickel, aluminum-bronze, or other non-ferrous alloys, these rings are inherently free from iron and cobalt. They ensure zero magnetic attraction (permeability µ ≈ 1.0) and will not disrupt sensitive magnetic fields.
Superior Machinability & Precision: Unlike brittle alternatives like ceramics, our non-magnetic alloys can be machined to exceptionally tight tolerances with excellent surface finishes. We achieve precise IDs, ODs, and parallelism (±0.005mm standard, tighter on request).
Excellent Corrosion Resistance & Conductivity: Many of our alloy options offer good to excellent resistance to corrosion from moisture, chemicals, and salts. Certain alloys also provide beneficial electrical or thermal conductivity.
Lightweight & Cost-Effective Alternative: Compared to dense tungsten-based non-magnetic materials, our alloy rings offer a favorable strength-to-weight ratio and are often more economical, especially for larger diameters.

Technical Specifications

We provide standard and fully custom-machined rings. Below are our common capabilities.

Parameter	Specification / Standard Offering
Primary Materials	Cupronickel (e.g., C71500), Aluminum Bronze, Non-Magnetic Stainless Steels (e.g., 316L), Other Engineered Non-Ferrous Alloys
Key Properties	Non-Magnetic (µ ≈1.0), Good Machinability, Corrosion Resistant, Electrically Conductive (material dependent)
Standard Diameter Range	Inner Diameter (ID): From 2mm \| Outer Diameter (OD): Up to 300mm
Standard Thickness/Width	From 1mm to 50mm
Standard Tolerances	ID/OD: ±0.02mm \| Thickness: ±0.01mm \| Can achieve ±0.005mm for critical dimensions
Surface Finish	Standard Machined: Ra 1.6 μm \| Fine Machined: Ra 0.8 μm or better
Additional Features	Can be supplied with grooves, threads, holes, or special coatings as per print

Target Applications & Industries

These versatile rings serve as crucial components across a wide range of high-tech fields.

Industry	Typical Use Cases
Electronics & Semiconductor	RF Shielding Gaskets, Vacuum Chamber Spacers, Sensor Mounting Rings within production equipment. Prevents eddy currents and magnetic interference.
Medical & Diagnostic Imaging	Non-Magnetic Hardware, Spacers, and Supports inside MRI and CT scanners. Ensures patient safety and image fidelity.
Aerospace & Defense	Shielding Rings, Conductive Bushings, and Structural Spacers in guidance systems and avionics where magnetic signature must be minimized.
Research & Instrumentation	Sample Holders, Collimators, and Mounting Rings in electron microscopes, spectrometers, and physics experiments.
General Precision Engineering	Insulating Spacers, Alignment Rings, and Wear-Resistant Bushings in any machinery where non-magnetic properties are specified.

Why Source From Us?

Material Expertise: We guide you to the optimal alloy (CuNi, Al Bronze, etc.) balancing non-magnetic properties, strength, corrosion resistance, and budget for your specific case.
Precision Manufacturing Focus: We specialize in turning simple ring specifications into high-precision, ready-to-install components that fit perfectly the first time.
Full Customization & Support: We manufacture to your exact blueprint. Provide a sketch, drawing, or CAD file, and we handle the rest.
